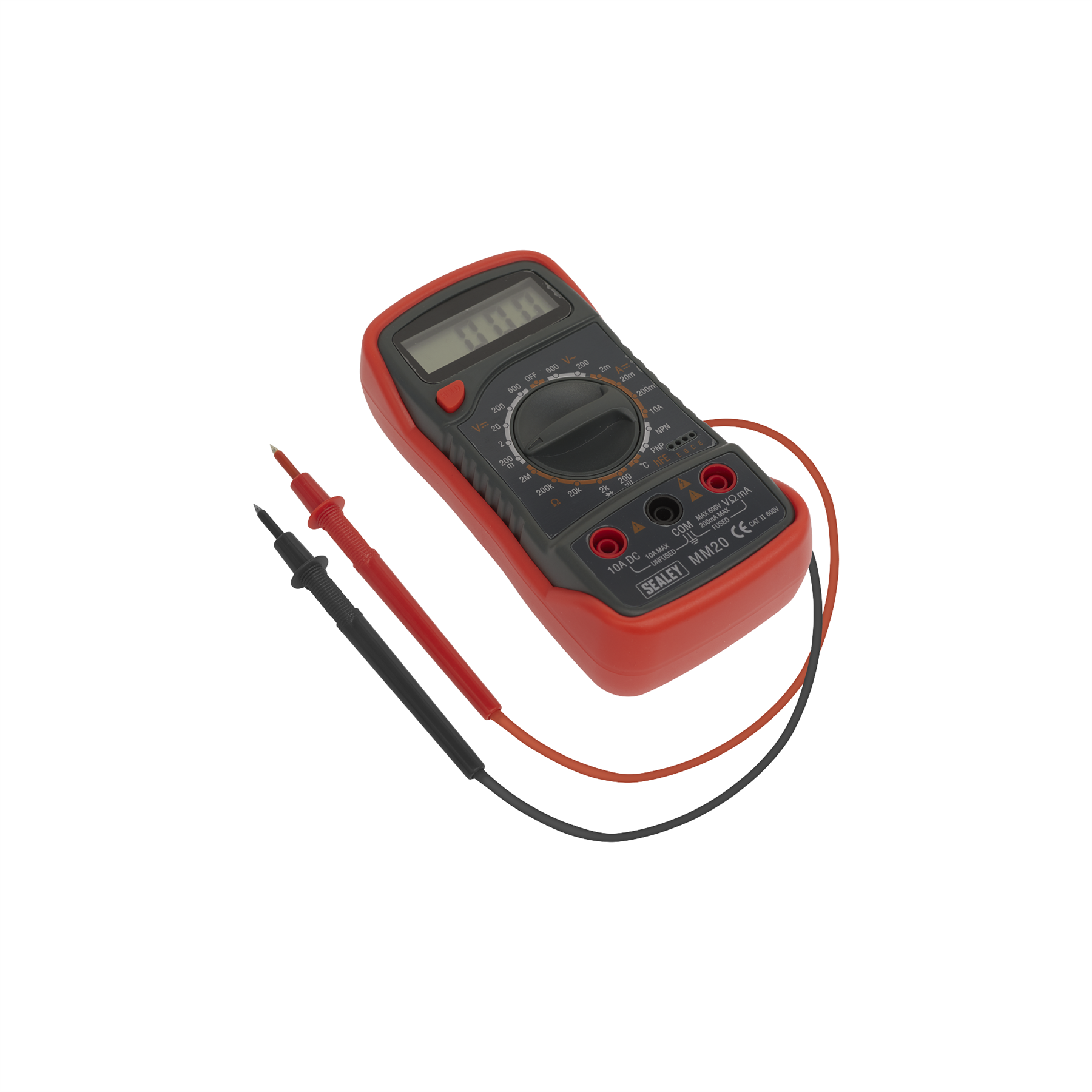

Sealey Digital Multimeter 8 Function with Thermocouple - MM20

The Sealey 8-Function Digital Multimeter with Thermocouple is a heavy-duty, general-purpose testing instrument suitable for automotive, electrical, workshop and maintenance applications.

It features a clear, easy-to-read LCD display and can measure AC and DC voltage, DC current, resistance and temperature. Additional functions include audible continuity testing, diode and transistor verification, plus a data-hold facility for retaining readings on screen.

The multimeter is housed in a rugged, high-impact rubber protective boot with an integral stand for convenient hands-free use. It is supplied with a full set of test leads, probes, a temperature probe and a 9V battery.

Key Features

• Genuine Sealey 8-function digital multimeter
• Heavy-duty general-purpose design
• Clear and easy-to-read LCD display
• Measures AC and DC voltage
• Measures DC current and resistance
• Temperature range from -40°C to 1000°C
• Audible continuity testing
• Diode and transistor verification modes
• Data-hold function
• Low-battery indicator
• High-impact rubber protective case
• Integral stand for hands-free use
• Supplied with test leads, probes and thermocouple
• Includes one 9V battery
• Conforms to IEC 1010

Measurement Ranges

AC Voltage

• 200V and 600V
• Accuracy: ±2%

DC Voltage

• 200mV: ±0.5%
• 2V, 20V, 200V and 600V: ±0.8%

DC Current

• 2mA and 20mA: ±1%
• 200mA: ±1.2%
• 10A: ±2%

Resistance

• 200Ω, 2kΩ, 20kΩ and 200kΩ: ±0.8%
• 2MΩ: ±1.2%

Temperature

• Range: -40°C to 1000°C
• Accuracy: ±1% up to 400°C
• Accuracy: ±2% above 400°C

Additional Functions

• Audible continuity: Yes
• Diode test: Yes
• Transistor test: Yes
• AC current measurement: No
• Capacitance measurement: No
• Frequency measurement: No
• Duty-cycle measurement: No

Specifications

• Display: 6 digits, 12mm character height
• Battery: 1 x 9V, supplied
• Dimensions: 140 x 70 x 35mm
• Weight: 260g
• Protective case: High-impact rubber
• Stand: Integral
• Conformity: IEC 1010
